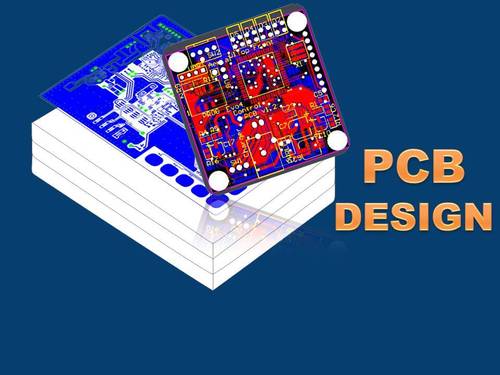

PCB Design(4 LAYERS)
A printed circuit board (PCB) mechanically supports and electrically connects electronic components using conductive tracks, pads and other features etched from copper sheets laminated onto a non-conductive substrate. PCBs can be single sided (one copper layer), double sided (two copper layers) or multi-layer (outer and inner layers). With our Engineering & Software, we have what it takes to meet your project needs from concept to production and also be your complete electronic engineering partner no matter how large or small your project is. We may provide single sided (one copper layer), double sided (two copper layers) or multi-layer (outer and inner layers) PCB design from our own house PCB design Software(Eagle 6.2) setup.
